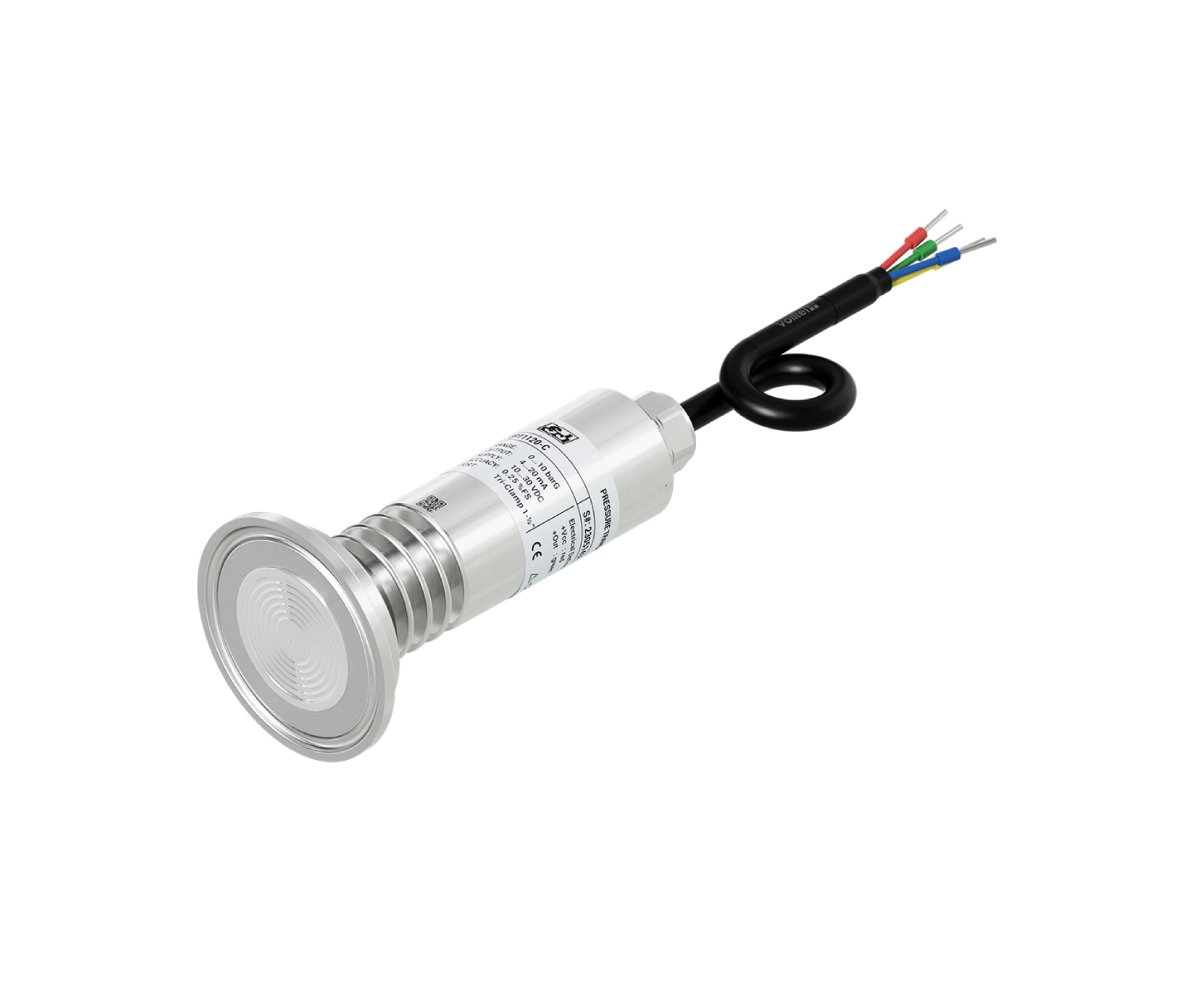

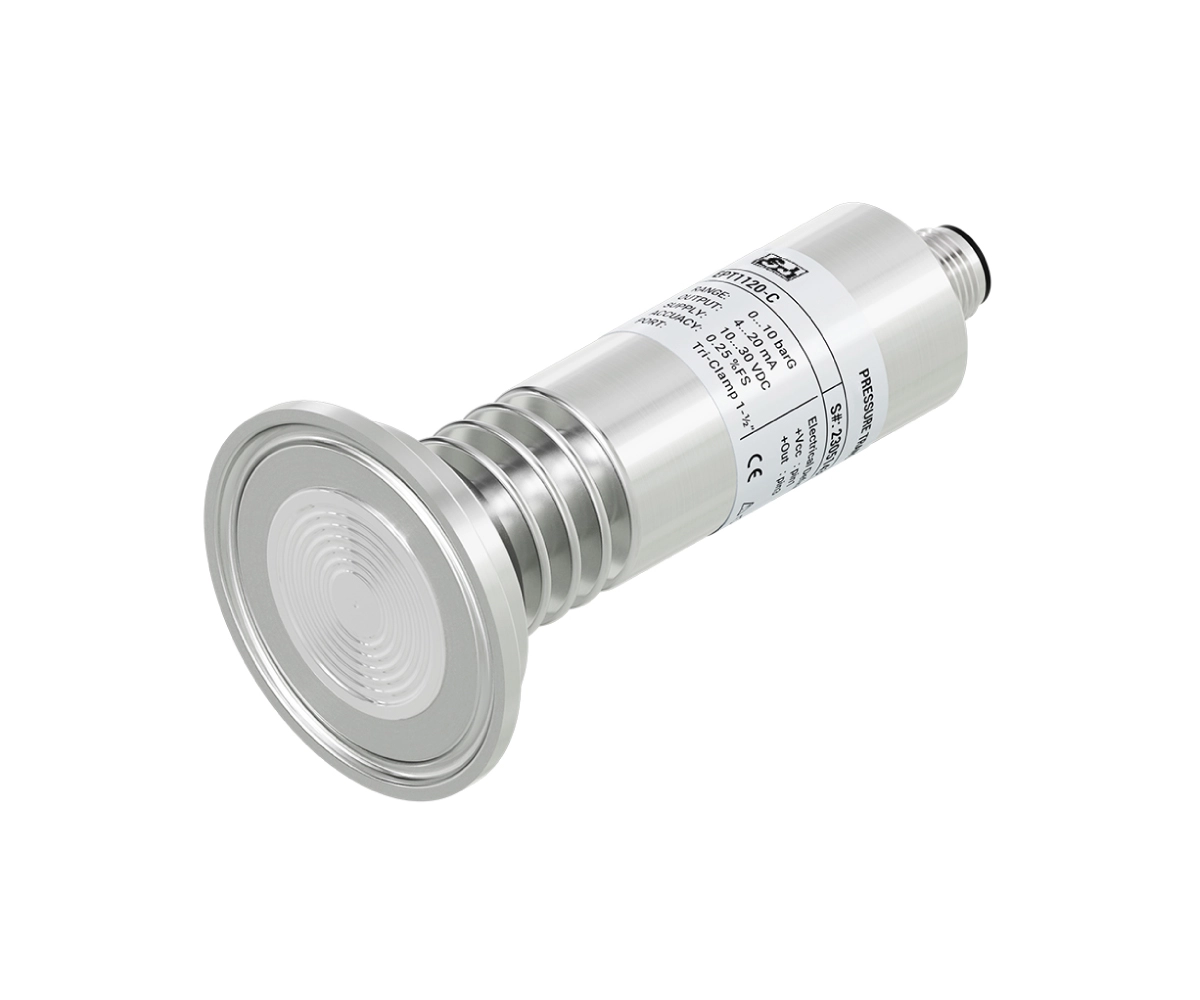

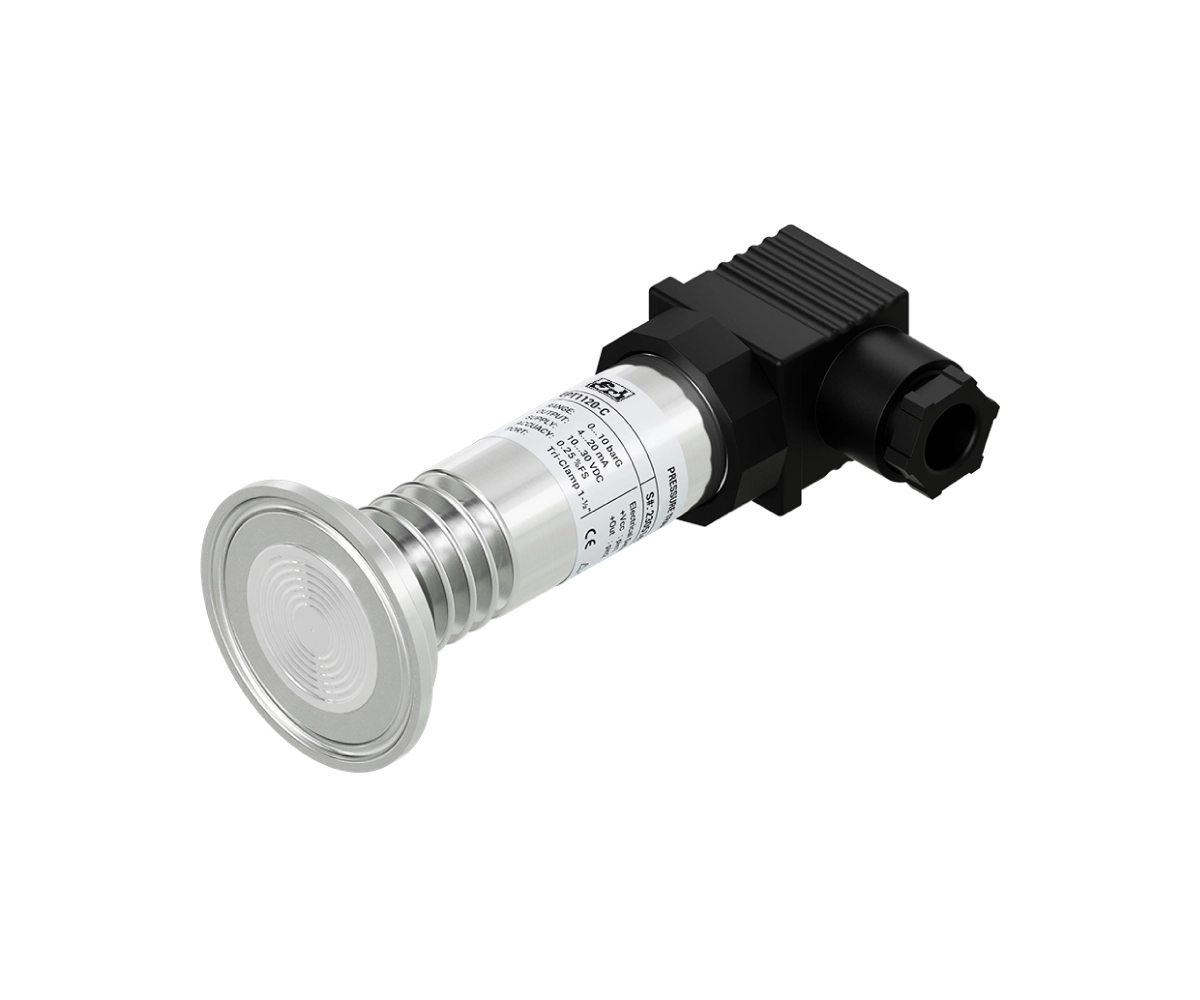

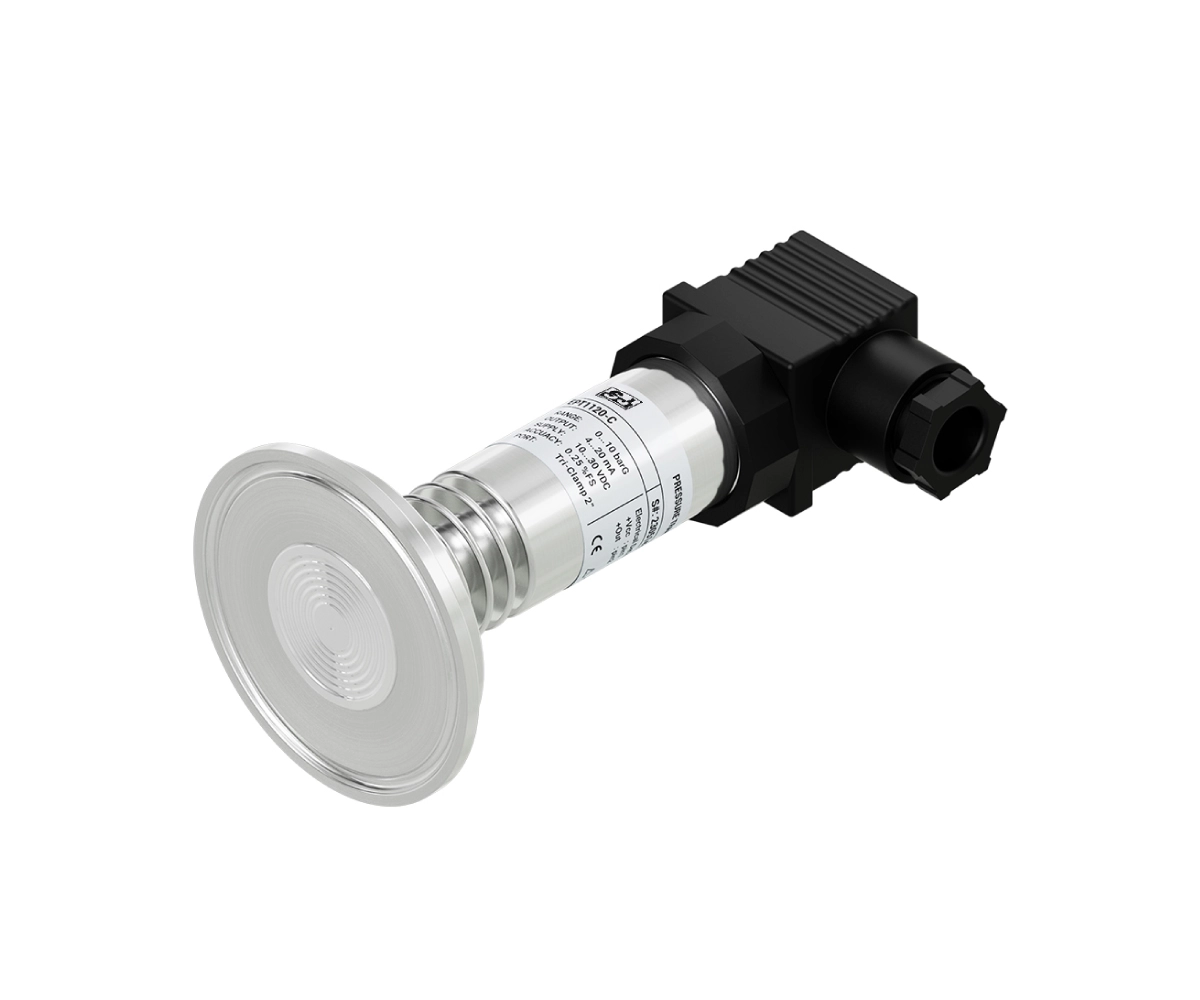

Flush Diaphragm Pressure Transmitter- Hygienical Application
Model:VMEPT1120-C
Descripción:
- Hygienical application
- Stainless steel flush diaphragm
- Measuring ranges from 100mbar to 25bar
- Servicio de presentación receptivo / Garantía personalizable / de alta calidad / un año
- La imagen es para referencia; El producto real se basará en sus especificaciones personalizadas.
- Leer más: ¿Qué es un transmisor de presión a prueba de explosión?
Especificación de producto
※For detailed specifications or operating instructions, please refer to the“Download file” section above.
Swipe left / right for more info| Measuring range | 0 ... 25 bar |
|---|---|
| Min. measuring span | 100 mbar |
| Max. measuring span | 25 bar |
| Pressure Type | Absolute and gauge pressure |
| Output signal / Supply | 2-wire 4…20mA / Vs=10...30VDC 3-wire DC 1…5V / Vs=10...30VDC 3-wire DC 0…5V / Vs=10...30VDC 3-wire DC 0.5…4.5V / Vs=8...30VDC 3-wire DC 0.5…4.5V ratiometric / Vs=5 V±0.1 VDC 3-wire DC 0.5…2.5V / Vs=5 V±0.1 VDC 3-wire DC 0.5…2.5V / Vs=3.3 V±0.1 VDC 3-wire DC 0…10V / Vs=12...30VDC 2-wire 4…20mA+HART / Vs=12...30 VDC 4-wire RS485 Modbus RTU(Pre.) / Vs=12...30 VDC 4-wire RS485 Modbus RTU(Pre.) / Vs=3.6...5 VDC 4-wire I2C(Pre.) / Vs = 3.3...5 VDC |
| Exactitud | ± 0.1% FS ± 0.25% FS ± 0.5% FS Including non-linearity, hysteresis and non-repeatability according BFSL |
| Operating Temperature | -20 to 85 °C -20 to 125°C |
| Material process membrane | SUS316L Stainless steel |
| Long term stability | ≤ ±0.3 % FS/Year |
