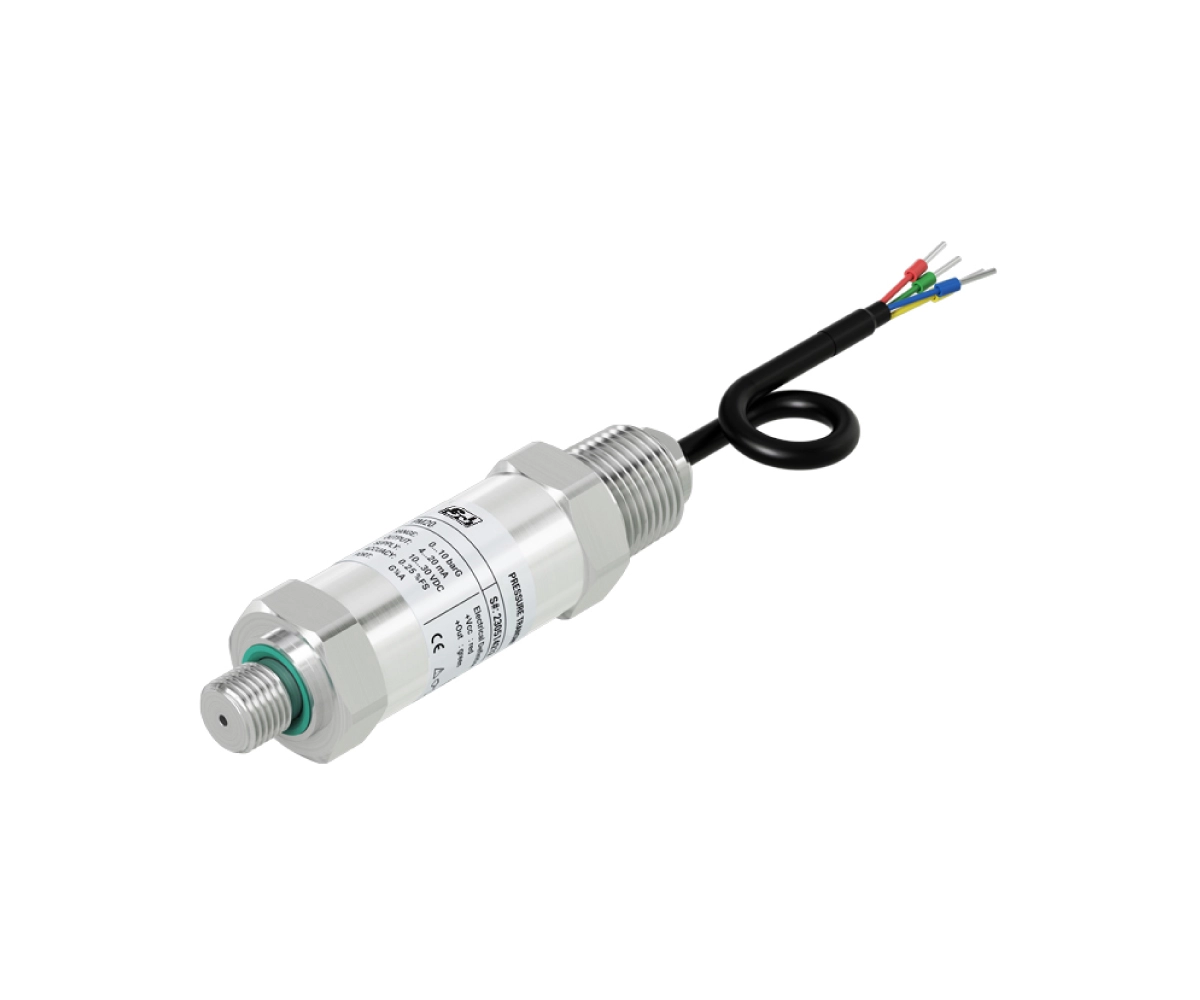

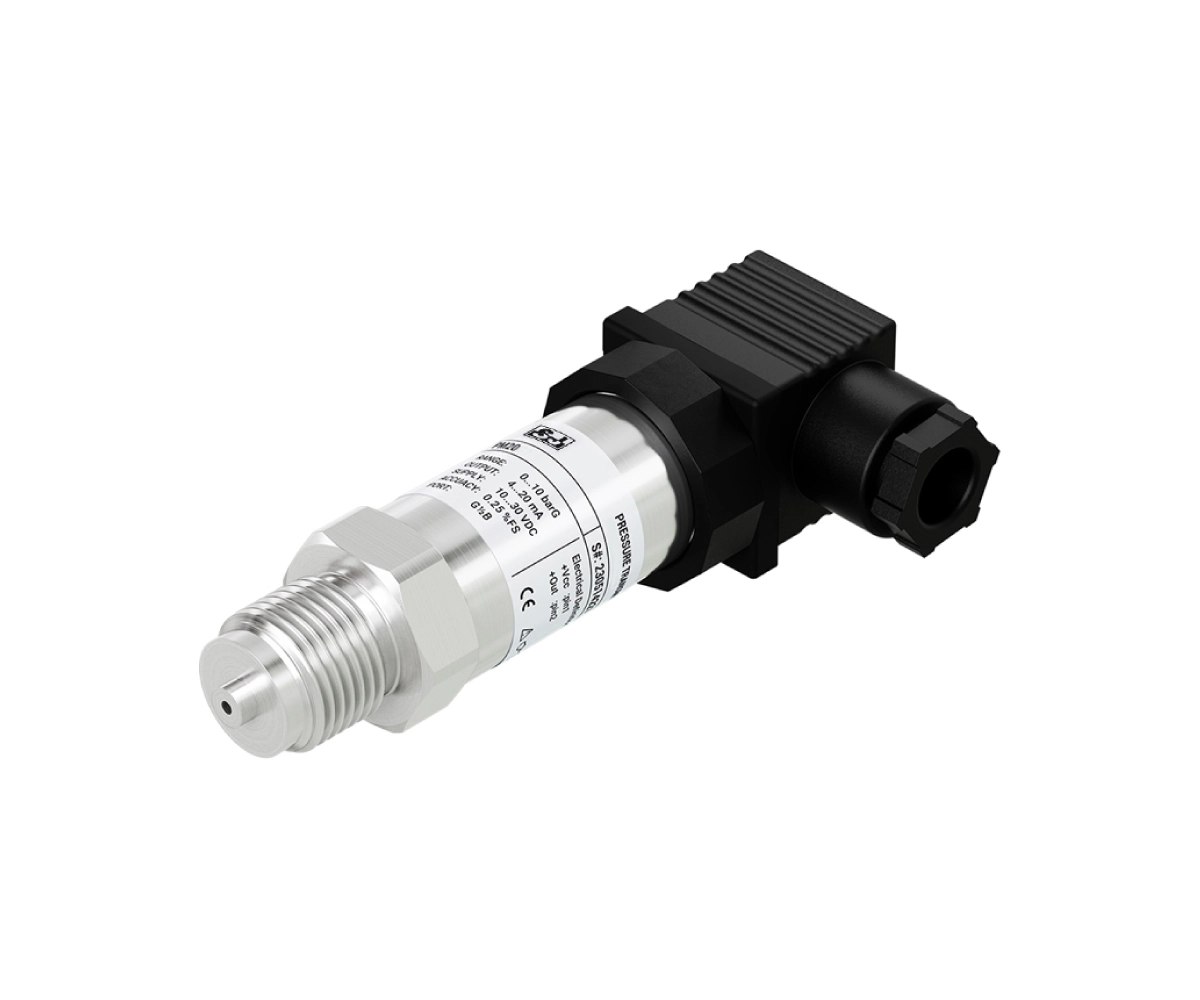

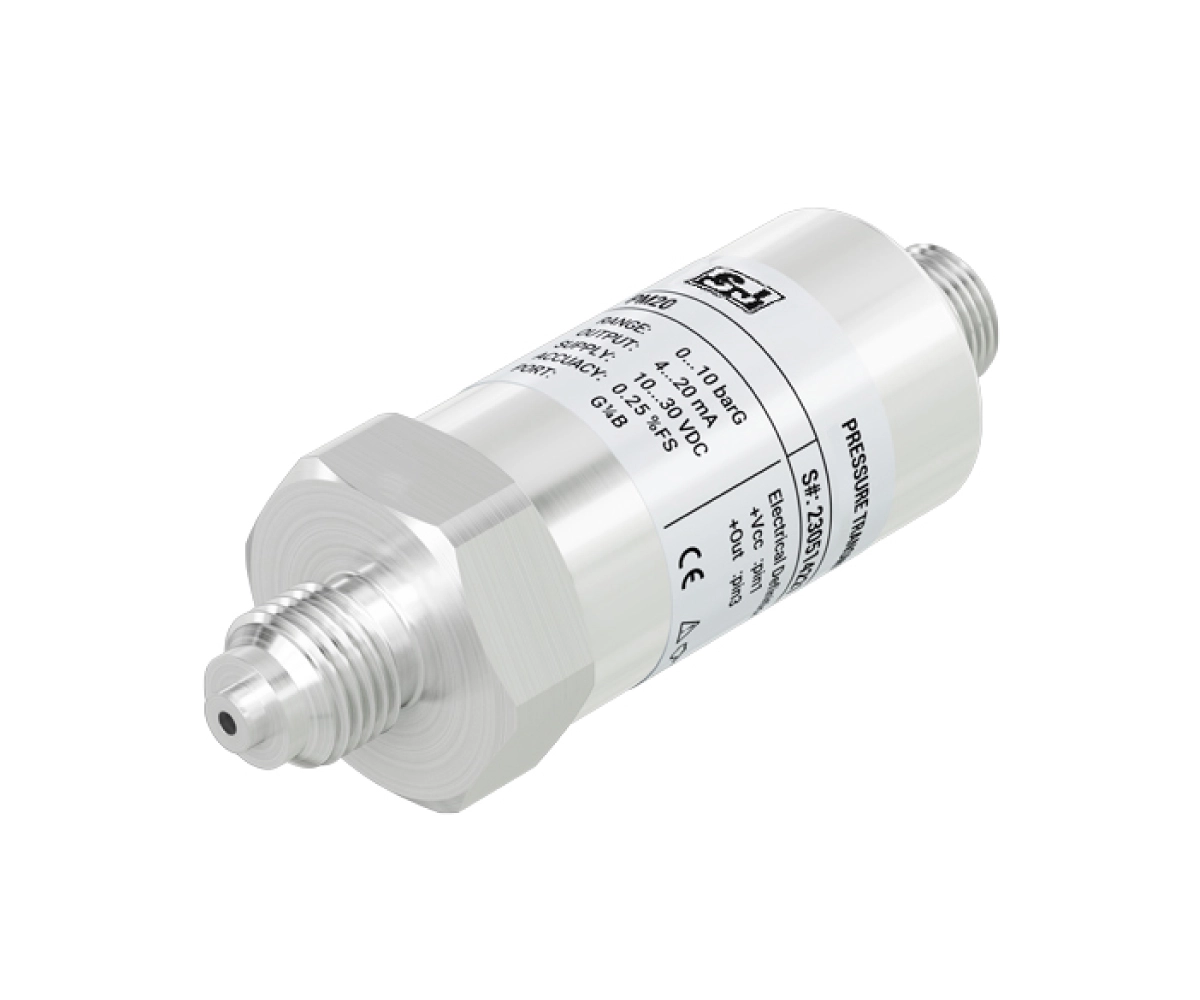

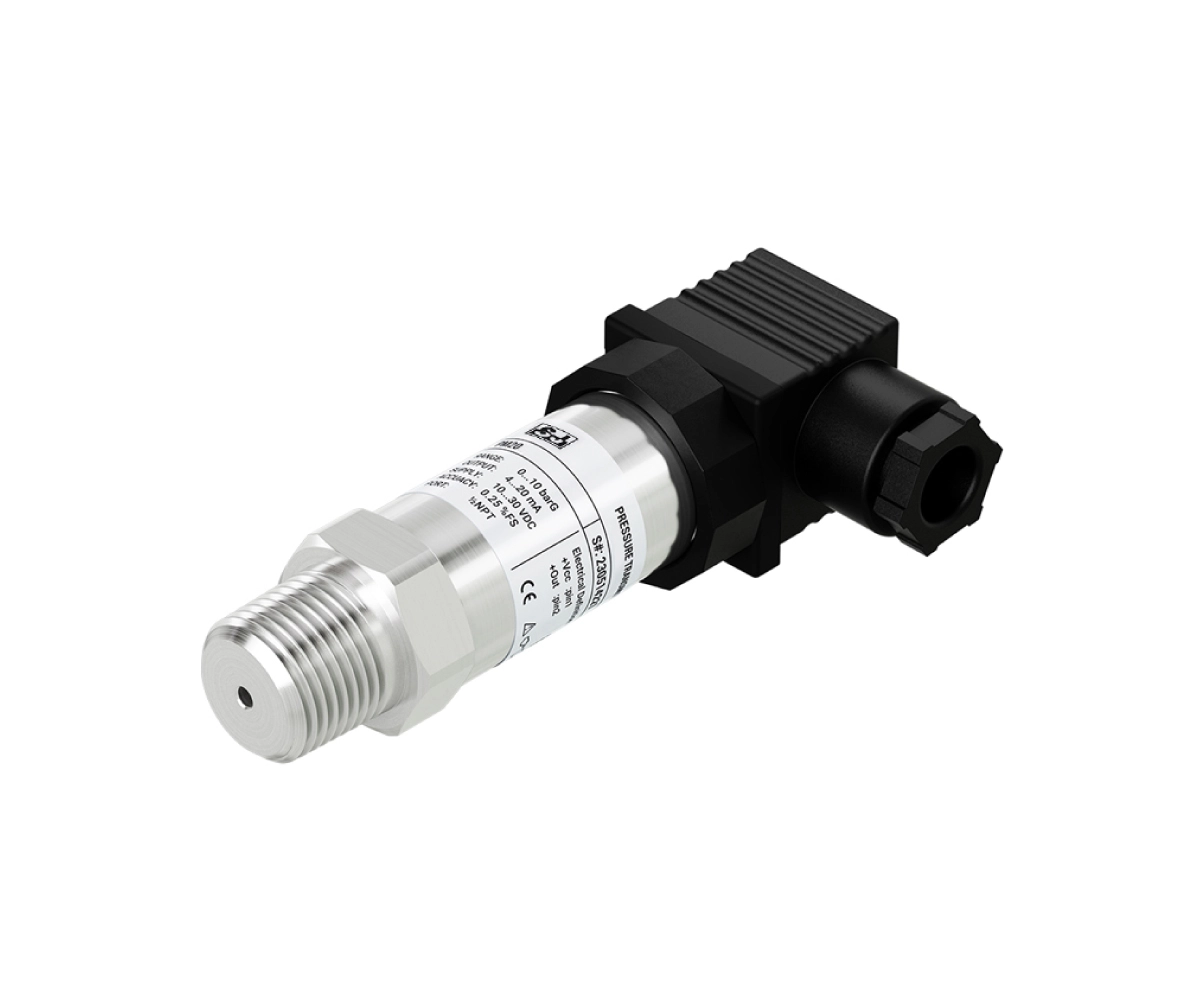

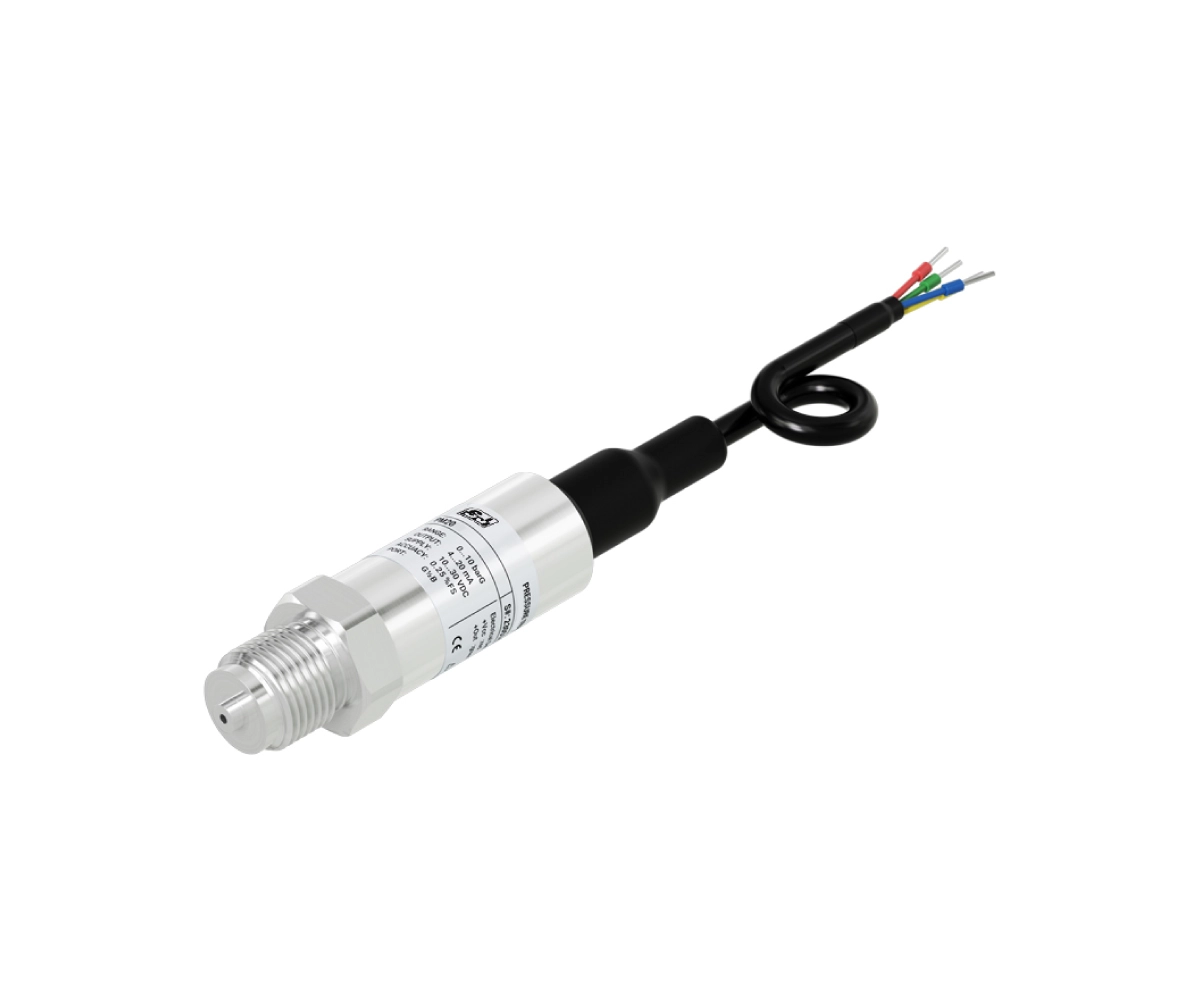

General Industrial Pressure Transmitter
Descripción:
- Measuring ranges from 100 mbar to 600 bar
- Accuracy: ±0.2% FSO (Min.), ±0.25% FSO (Typ.)
- Calibrated and temperature compensated
- Servicio de presentación receptivo / Garantía personalizable / de alta calidad / un año
- La imagen es para referencia; El producto real se basará en sus especificaciones personalizadas.
- Leer más: ¿Qué es un transmisor de presión a prueba de explosión?
Especificación de producto
※For detailed specifications or operating instructions, please refer to the“Download file” section above.
Swipe left / right for more info| Measuring range | 0 ... 600 bar |
|---|---|
| Min. measuring span | 100 mbar |
| Max. measuring span | 600 bar |
| Pressure Type | Absolute and gauge pressure |
| Output signal / Supply | 2-wire 4…20mA /VS =12...30VDC 3-wire 1…5VDC / VS= 12...30VDC 3-wire 0.5…4.5VDC / VS = 5VDC 2-wire 4…20mA+HART / VS =12... 30VDC 4-wire RS485 Modbus RTU /VS = 12... 30VDC |
| Exactitud | ±0.2%FS ±0.25%FS Including non-linearity, hysteresis and non-repeatability according BFSL |
| Operating Temperature | 0 to 85 °C 0 to 70°C |
| Material process membrane | SUS316L Stainless steel |
| Long term stability | ≤ ±0.3 %FS/Year |
